| MH1094 (3/8" x 18.5" tines) |
| * Section only |
| Width |
4' 6" |
6' |
7' 6" |
| Tine Diameter |
3/8" |
3/8" |
3/8" |
| Tine Length |
18.5" |
18.5" |
18.5" |
| # of Tines Per Bar |
3 |
4 |
5 |
| Mounting Bar Diameter |
2" |
2" |
2" |
| Weight (3-Bar)* |
120 lbs. |
152 lbs. |
186 lbs. |
| Weight (4-Bar)* |
150 lbs. |
190 lbs. |
232 lbs. |
| Usage |
Level and firm a variety of soil conditions; distribute residue |
| MH1104 (1/2" x 20" tines) |
| * Section only |
| Width |
6' |
8' |
10' |
| Tine Diameter |
1/2" |
1/2" |
1/2" |
| Tine Length |
20" |
20" |
20" |
| # of Tines Per Bar |
3 |
4 |
5 |
| Mounting Bar Diameter |
2-3/8" |
2-3/8" |
2-3/8" |
| Weight (3-Bar)* |
210 lbs. |
260 lbs. |
319 lbs. |
| Weight (4-Bar)* |
290 lbs. |
352 lbs. |
426 lbs. |
| Usage |
Low frame implements |
| MH1105 (1/2" x 26" tines) |
| * Section only |
| Width |
6' |
8' |
10' |
| Tine Diameter |
1/2" |
1/2" |
1/2" |
| Tine Length |
26" |
26" |
26" |
| # of Tines Per Bar |
3 |
4 |
5 |
| Mounting Bar Diameter |
2-3/8" |
2-3/8" |
2-3/8" |
| Weight (3-Bar)* |
215 lbs. |
266 lbs. |
326 lbs. |
| Weight (4-Bar)* |
296 lbs. |
359 lbs. |
434 lbs. |
| Usage |
Lateral action and smoother field finish |
| MH1106 (9/16" x 26" tines) |
| * Section only |
| Width |
6' |
8' |
10' |
| Tine Diameter |
9/16" |
9/16" |
9/16" |
| Tine Length |
26" |
26" |
26" |
| # of Tines Per Bar |
3 |
4 |
5 |
| Mounting Bar Diameter |
2-3/8" |
2-3/8" |
2-3/8" |
| Weight (3-Bar)* |
230 lbs. |
290 lbs. |
354 lbs. |
| Weight (4-Bar)* |
314 lbs. |
382 lbs. |
472 lbs. |
| Usage |
Aggressive leveling and maximum residue flow |
| MH1108 (5/8" x 28" tines) |
| * Section only |
| Width |
6' |
8' |
10' |
| Tine Diameter |
5/8" |
5/8" |
5/8" |
| Tine Length |
28" |
28" |
28" |
| # of Tines Per Bar |
3 |
4 |
5 |
| Mounting Bar Diameter |
2-3/8" |
2-3/8" |
2-3/8" |
| Weight (3-Bar)* |
255 lbs. |
320 lbs. |
391 lbs. |
| Weight (4-Bar)* |
344 lbs. |
424 lbs. |
516 lbs. |
| Usage |
Most extreme conditions |

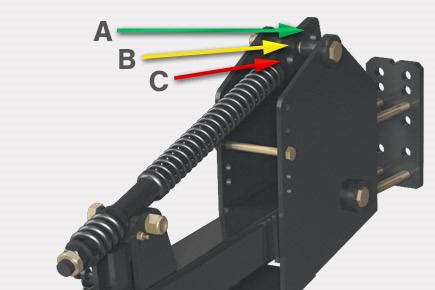

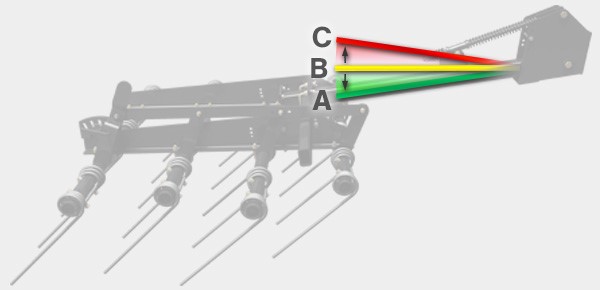

Arm Height Adjustment
The mounted harrow arm can be raised or lowered for the optimal height on any piece of tillage equipment. Three holes (A, B and C) at the top of the spring rod allow for multiple height settings.
| Arm Length |
Adjustment Options |
| 34" |
A= -4.75" |
| |
B= 0 |
| |
C= +4.75" |
| 42" |
A= -6" |
| |
B= 0 |
| |
C= +6" |
| 52" |
A= -7.5" |
| |
B= 0 |
| |
C= +7.5" |
| |
|

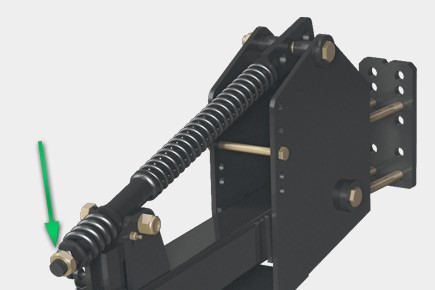

Adjustable Nut
A nut at the bottom end of the spring rod offers incremental adjustments to fine-tune the fit of the mounted harrow to a piece of tillage equipment.
| Arm Length |
Adjustment Options |
| 34" |
0 to +1.5" |
| 42" |
0 to +1.75" |
| 52" |
0 to +2.5" |
| |
|
Mounted Rolling Basket
Rolling baskets are great for breaking up clumps, while leveling the soil profile. Ours have a patented mud scraper to help prevent mud build-up in wet conditions.
Mounted Rolling Chopper
Rolling choppers are an ideal field finishing tool for better sizing and more complete incorporation.
